New solver in SOLIDWORKS 2015 is over 40% quicker!

Wednesday March 4, 2015 at 9:59am
The new “Intel Direct Sparse” solver was an enhancement that didn’t receive much attention at the 2015 launch event this year, but running some in-house tests has shown this new solver is over 40% faster than the standard Direct Sparse.

The new “Intel Direct Sparse” solver was an enhancement that didn't receive much attention at the 2015 launch event this year, but running some in-house tests has shown this new solver is over 40% faster than the standard Direct Sparse.

The new solver is able to put the unused resources of the computer to better use for multi-core processing environments. Using a DELL M6700 with i7 quad core 2.7 GHz processor (16GB’s RAM), the solve time on an assembly with no-penetration contact was over 40% quicker!

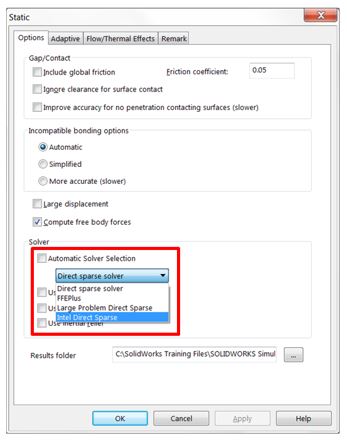

To switch it on, go into the study “properties” using a right-click on the top level of the study tree.  A dialog box appears which allows you to choose the Intel direct sparse...

SOLIDWORKS Simulation

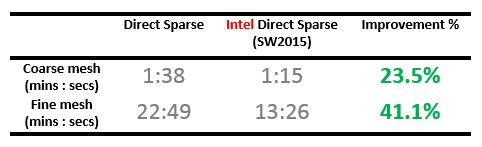

The model used for the test was one that’ll be familiar to many who've sat the standard Simulation training (or even the Essential course!) – it’s the “Cardan joint” assembly. Two tests at different mesh settings were used; a coarse and fine setting. What’s even better is the saving INCREASES as the problem becomes larger!

Coarse High Quality Mesh            Fine High Quality Mesh

The problem here is a static simulation, but it’ll also bring savings to other simulations which are solved “in-core” such as thermal, frequency, linear dynamic and nonlinear.

Happy Solving!

Craig Hudson

Applications Engineer
