Updating Custom Properties within SOLIDWORKS

Thursday May 22, 2014 at 10:42pm
Updating Custom Properties within SOLIDWORKS

Custom properties are used throughout SOLIDWORKS- they are simply text based information that helps further describe and add information about a document - they are sometimes known as metadata.

When created, properties can be used extensively throughout SOLIDWORKS, namely populating Bills of Materials and drawing borders, but also they provide additional items to search on. In this blog we discuss how you can add properties in the first place.



1) File menu > Properties

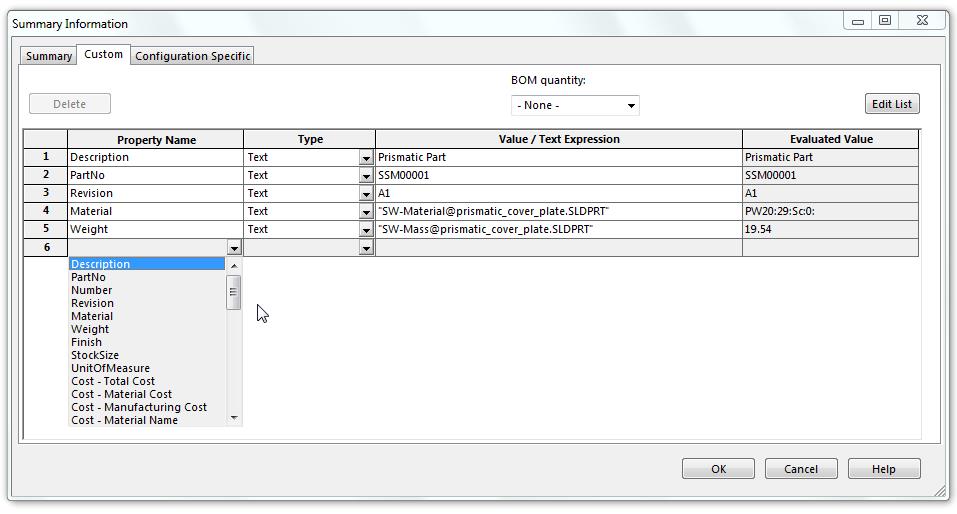

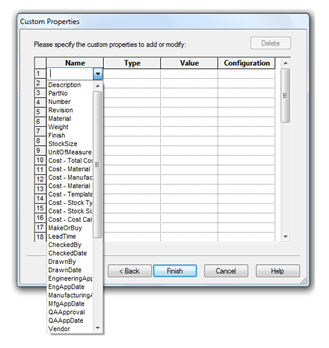

The first and most commonly used way to create file properties is from the File > Properties menu. Simply use the drop down menus to add the appropriate fields and values for each property.

2) Property Tab Builder

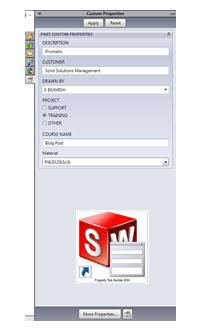

Located within the Start Menu > All programs > SOLIDWORKS 2014 > SOLIDWORKS Tools, you will find the Property Tab Builder. Using a form based approach we are able to produce an interactive field with intelligent controls from drop down lists to radio buttons. This method ensures all properties are required are presented to the user on the right hand side of the Screen within the Task Pane. Within this you can access the traditional file-properties through the ‘more properties' button at the bottom of the field.

3) SOLIDWORKS Explorer

We can even add properties to our SOLIDWORKS documents outside of the program. The first of which is SOLIDWORKS Explorer, and this allows contributors to add such values to the models freeing up the designer from this process. Within the ‘Properties’ tab we are able to <add new> fields to our files.



4) SOLIDWORKS Task Scheduler

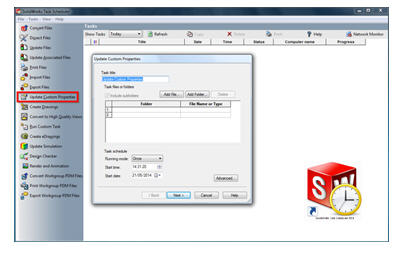

The task scheduler allows us to update custom properties at a scheduled date and time based on a file or a folder. Within this we can then specify the properties we wish to update. What is great about the scheduler is the fact you can process an entire folder of files therefore automating what could be a very tedious task.

5) Windows Explorer

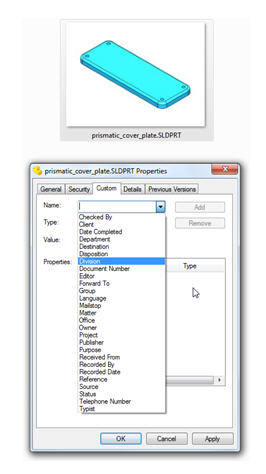

Within a Windows Explorer folder we can also update our properties. Simply Right click on the file and select properties. Here under Custom we can add or remove any values.

6) Workgroup PDM

Within the Workgroup PDM Addin, properties can be populated when documents are checked into the Vault- examples such as revision are automated generated by the system, but description and additional notes entered during the check in process can be mapped into standard custom properties.



7) Enterprise PDM

The second of our document management offerings provides many ways of populating properties through the use of Data Cards and Variables. These can be generated from lists, drop down menus, or automatically generated and entered during workflows and state changes.



No matter the method used to create the properties in the first place, using them particularly in SOLIDWORKS drawings can automate some of the more tedious data entry tasks- meaning less mistakes and better consistency.



By Simon Beamish

Applications Engineer.
