The 3DSwym application is at the heart of the 3D Experience platform and is the gateway to collaboration within your business. It allows users to post ideas and concepts and interact with them as things progress from concept to reality. Ideas are just one type of post. There are lots of other types, including Surveys, which allow you to quickly gather qualitative data to understand options and help make decisions. Alternatively, Question posts can be added to get opinions from the people who belong to your communities. We will touch on the other types of posts later on.

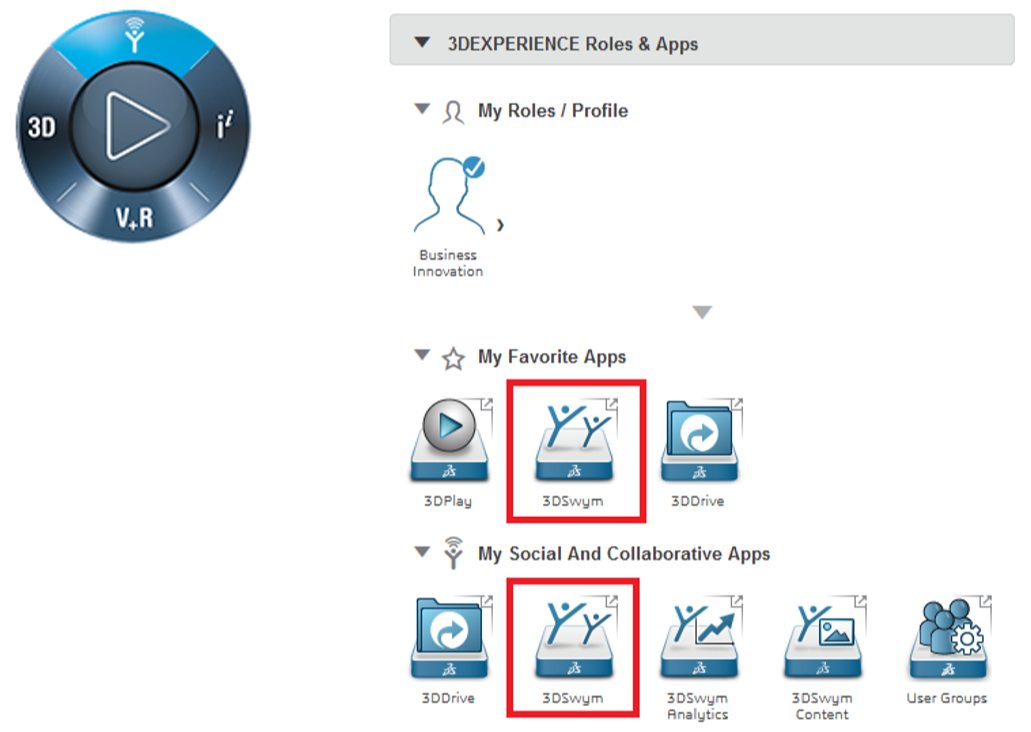

The 3DSwym app can be found in the north quadrant of the compass. Alternatively, you will notice that the 3DSwym app can be pinned to the “My Favourite” apps bar. If you double click the icon, it will launch 3DSwym full screen, or the app can be dragged and docked onto your dashboard.

Key Areas of the 3DSwym Interface

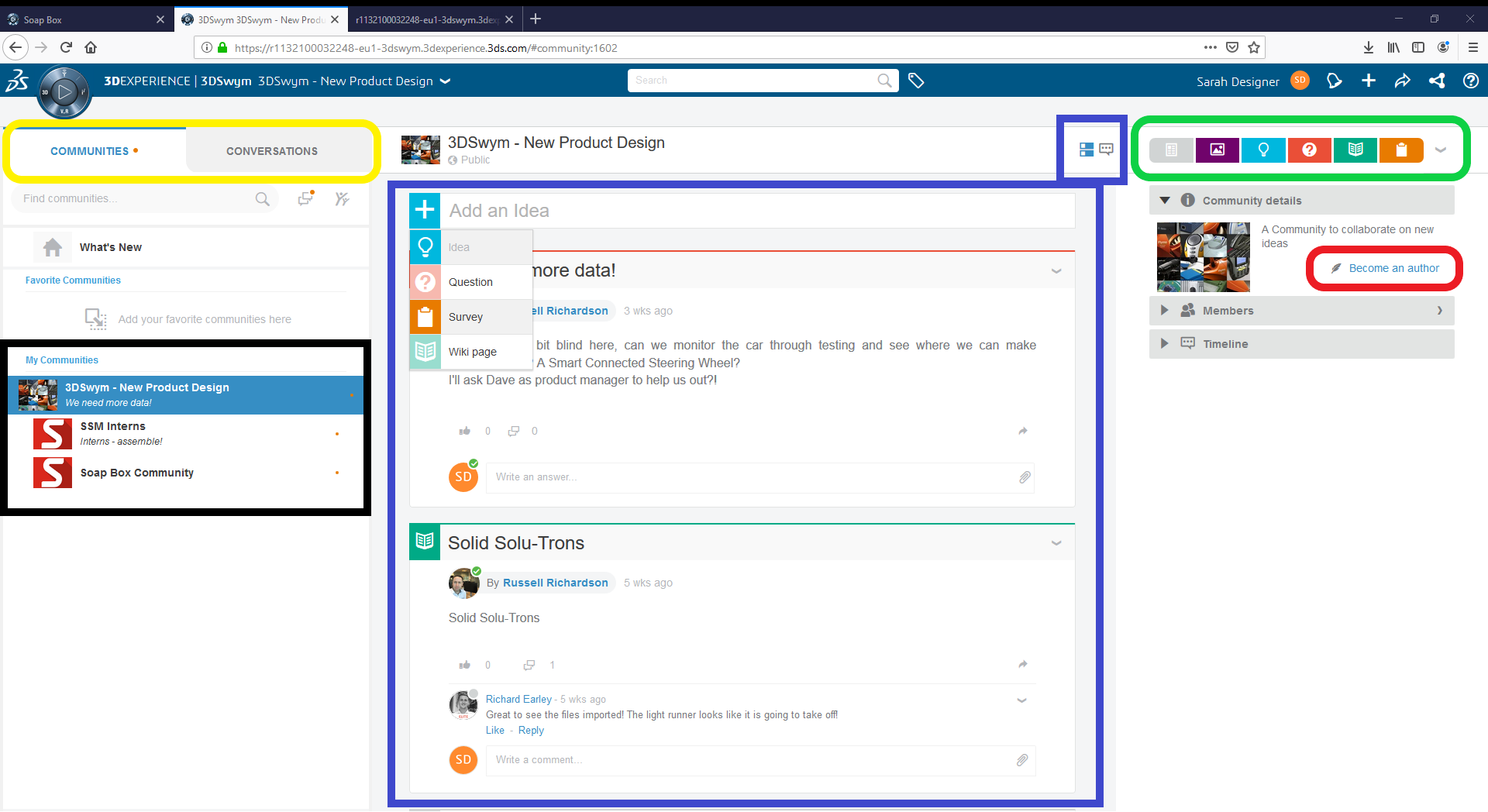

List of communities: Showing communities you have created as well as communities you have been invited to join.

Communities and Conversations: In this, you can toggle between the communities page and the Swym instant messaging page to respond to people in real-time.

Feed area: This is where you will see the latest community posts. You can switch to see the latest from all communities by pressing the “What’s new” option or pick a community from the list on the left. There is one further option above the feed to change the view to content in a timeline display (grouping threads together) or in time order where threads and replies are separated.

Quick filters: This row shows the icon for each post type, pressing each will filter the feed to show that type of post, making it easy to find the content you are interested in.

Request author rights: This option allows you ask the owner of the community for further permissions. A breakdown of permissions will be discussed later in the blog.

Rights Access

The level to which you can interact with content is limited by your rights access (assigned by the Platform Administrator), the three rights access levels are:

  • Owner: This user has authority over all media in a community.
  • Author: Can create any post that has been approved in that community.
  • Contributors: Respond to content posted by others on communities you are part of.



Activity Contributor Author Owner
 Post Off by default can be allowed by the owner, read any post in community Create, read, update and delete own content Create, read, update and delete any content
 Media Off by default can be allowed by the owner, read any post in community  Create, read, update and delete own content Create, read, update and delete any content
 Ideas Off by default can be allowed by the owner  Create, read, update and delete own content Status of an idea can only be changed by an Owner
 Questions Off by default can be allowed by the owner, read any post in community  Create, read, update and delete own content If an answer is, validated, only owners can update it
 Answers Submit answers to any question post Submit answers to any question post Create, read, update and delete any content
 Wiki Off by default can be allowed by the owner Read any content, depending on permissions can create, update and delete own content Create, read, update and delete any content
Surveys Off by default can be allowed by the owner, read any post in community  Read any content, depending on permissions can create, update and delete own content Create, read, update and delete any content
Comments Comment no any post type can update and delete their content Create, read and delete their own content Create, read, update and delete any content
Like Like any post type, can delete own likes Like any post type, can delete own likes Like any post type, can delete own likes
 Answer Rating Can participate in rating answers from a question Can participate in rating answers from a question Can participate in rating answers from a question

Viewing My Communities

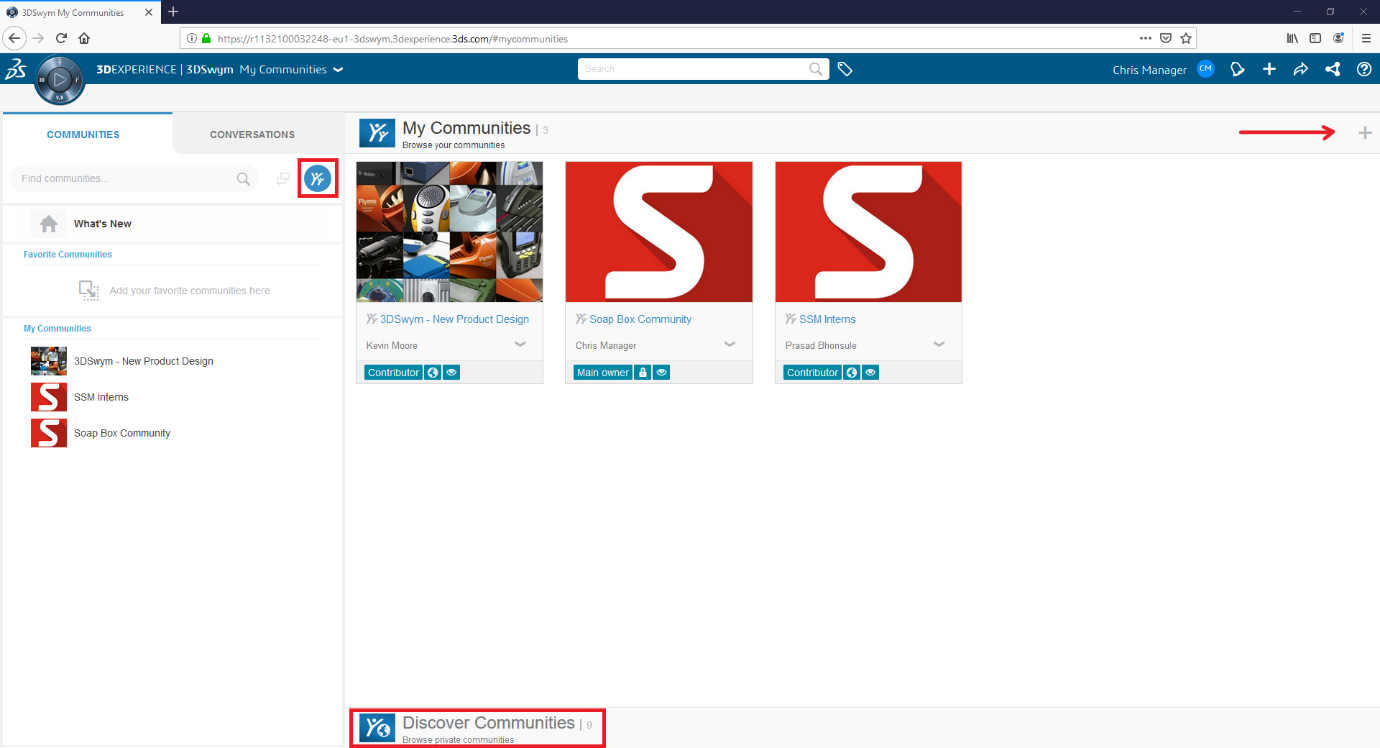

Clicking the 3DCommunities Icon will take you to the ‘My Communities’ page, showing all the communities you are a member of. On this page, it also shows you the level of permissions you currently have for each, the privacy level of the community and the community owner’s name.

To create a new community, press the + icon from the My Communities page.

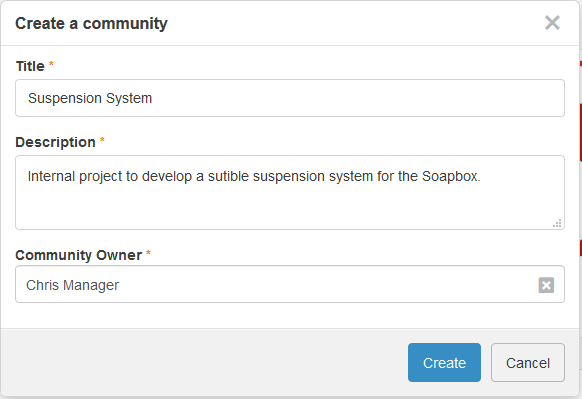

Once the title, description and owner have been filled, it will take you to the community settings page.

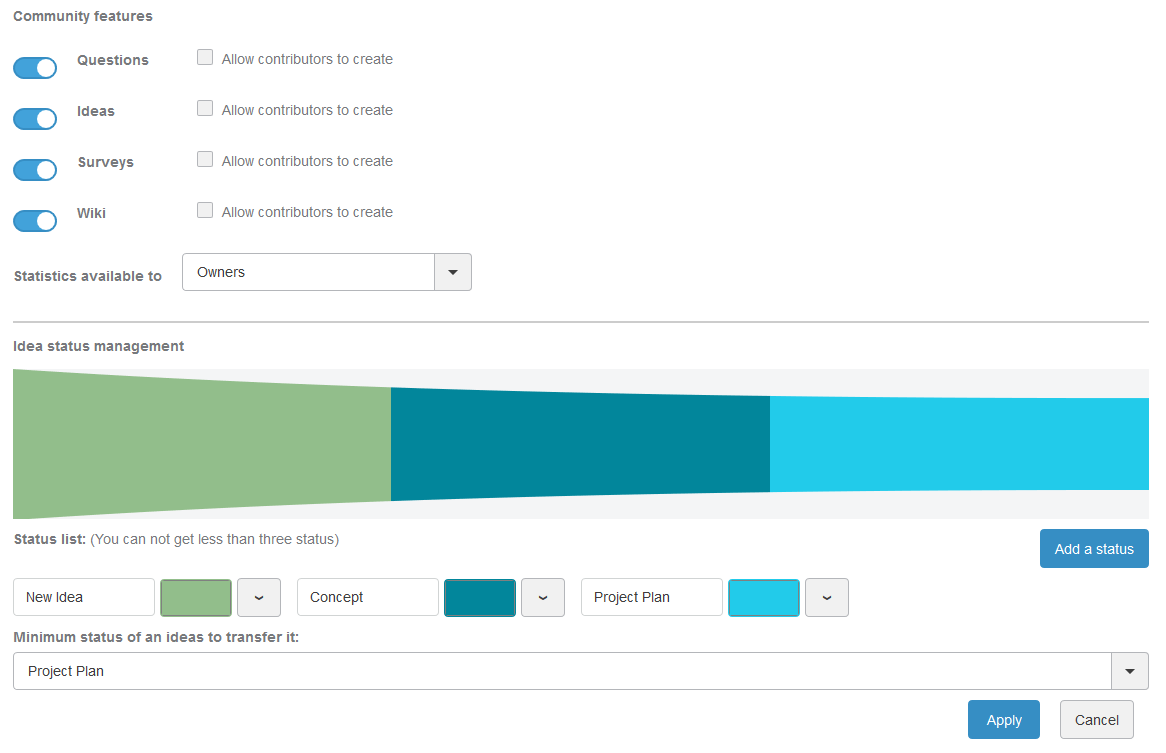

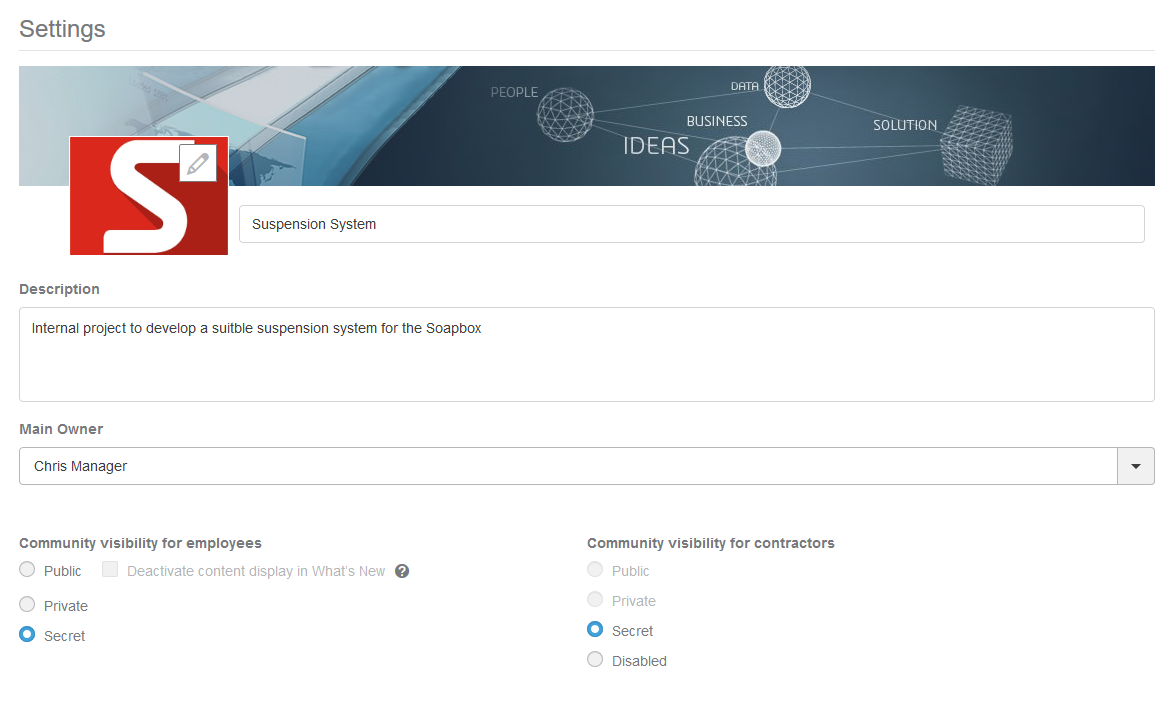

This is where you can set permissions for post types and allow contributors to create particular posts (turned off by default). There is also the option to add more statuses to an idea funnel to better represent your design process.

Adding Members to a Community

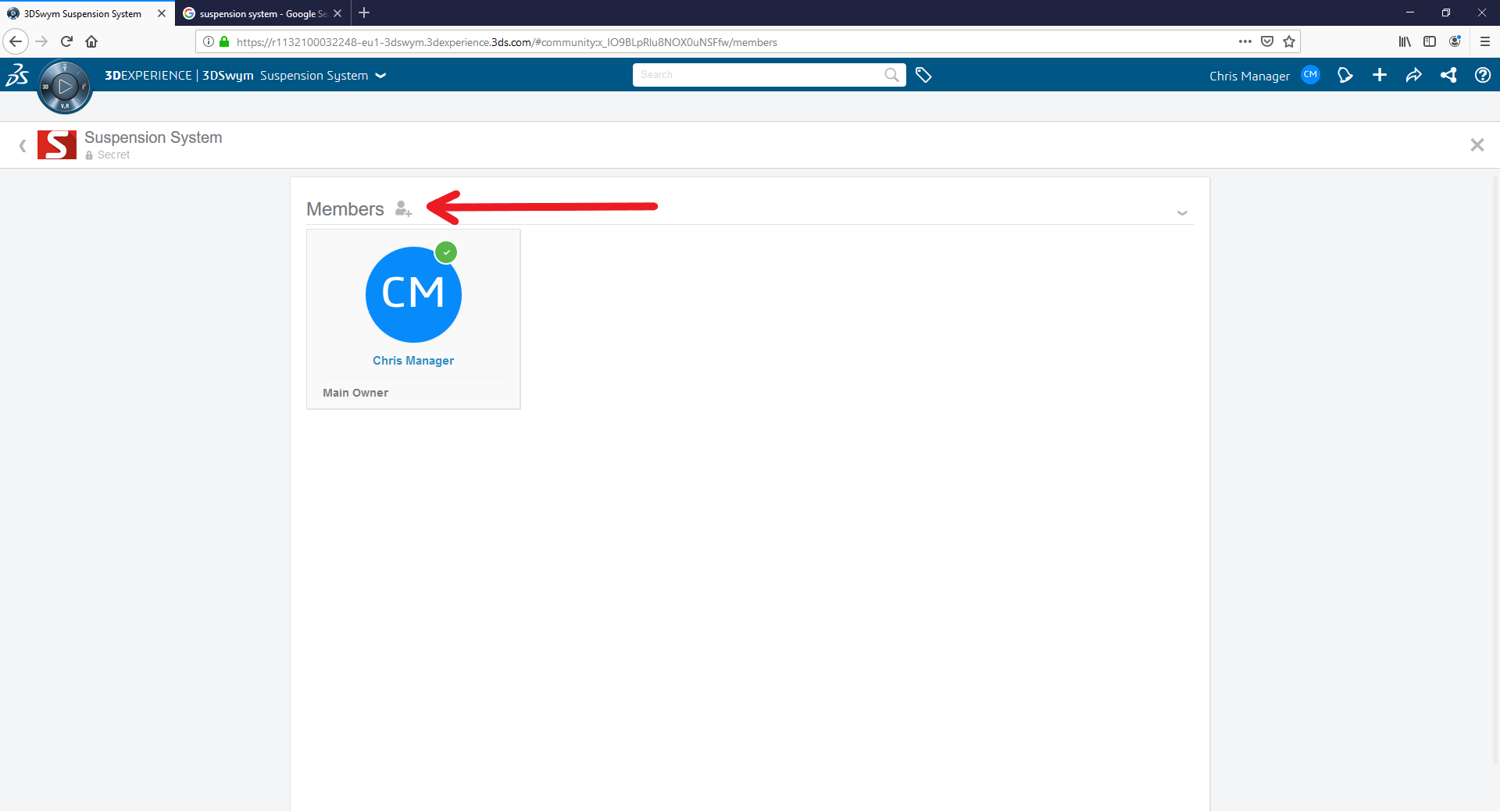

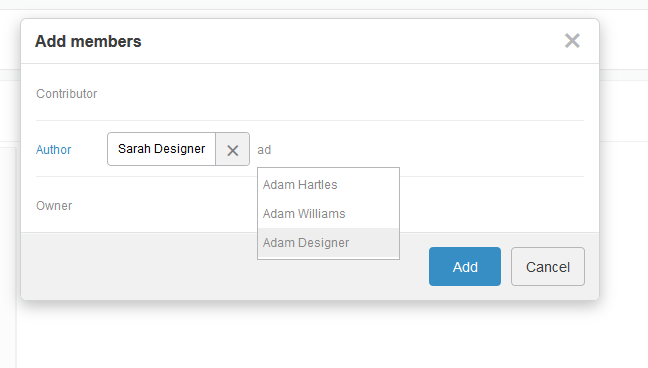

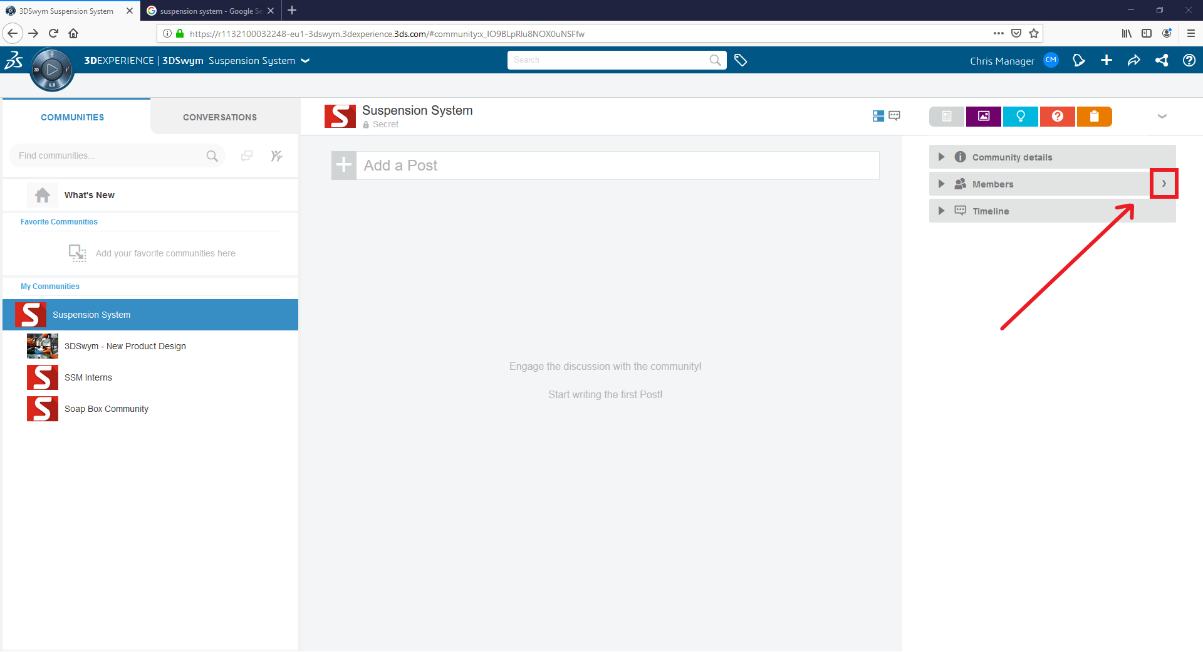

To add a member, simply start typing their name, and it will provide a drop-down with their full name (this of course is based on whether the user has been granted access to the overall 3DEXPERIENCE platform). To confirm which user you want to add, click on their name and they will be added to the list of new members and their assigned role in the community.

Changing an Existing User’s Role

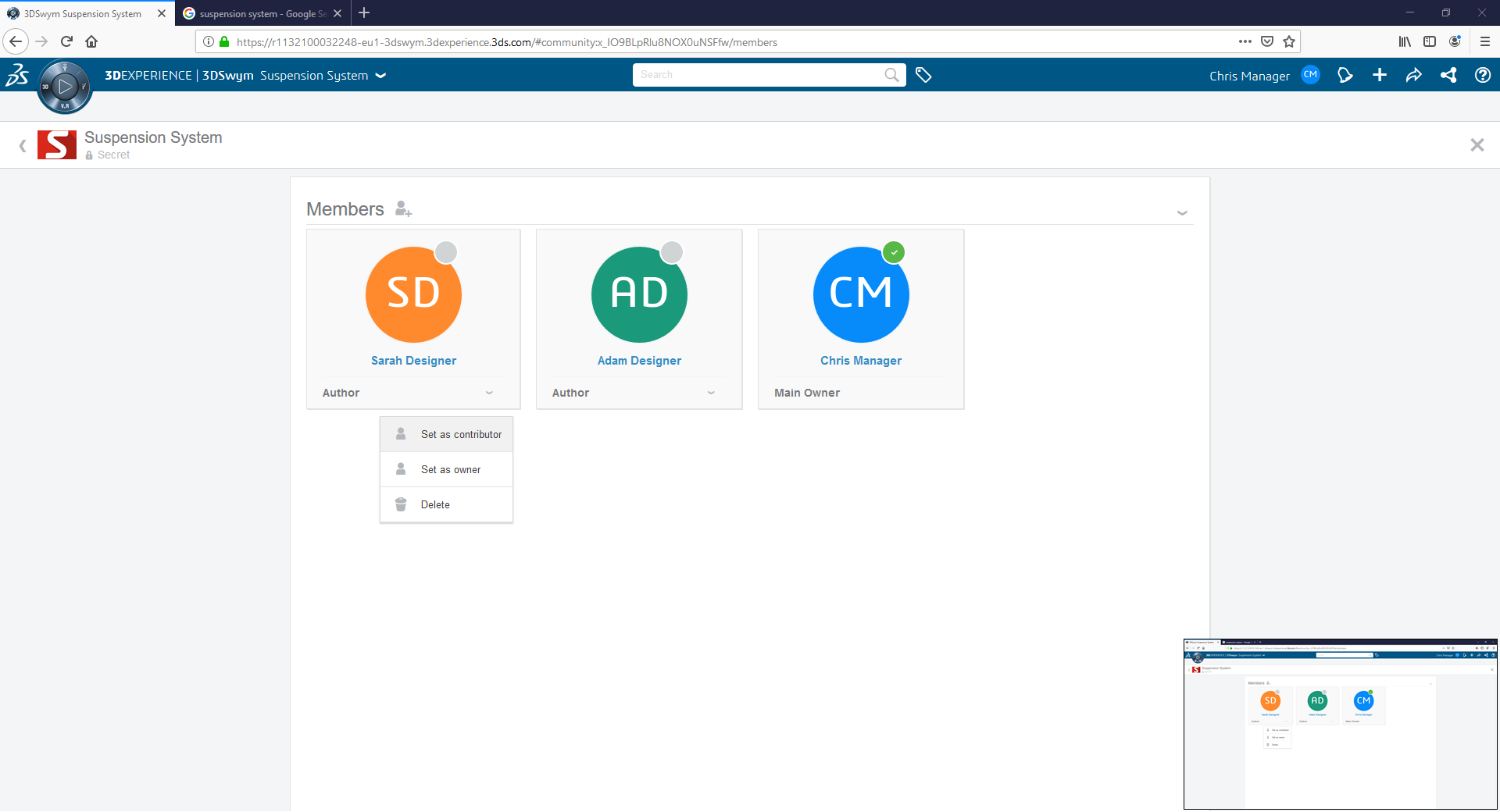

To change a user’s role simply click on the arrow next to their name and this will give you the option to change.

Example posts

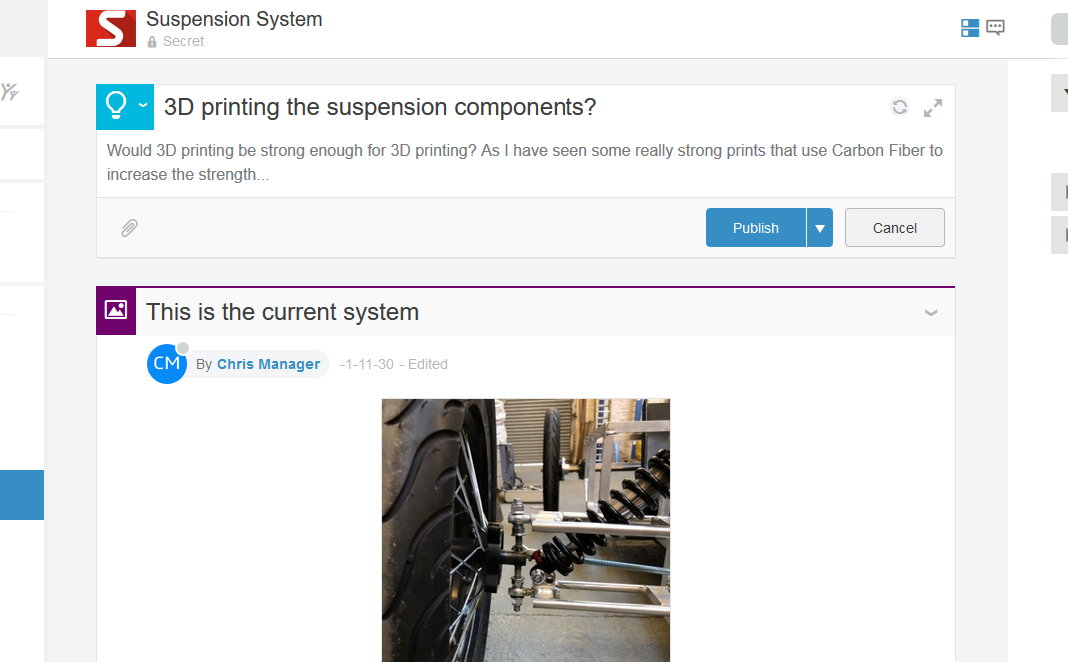

Below you will see an examples of different post types, notice in the image below how we can create a post with an @ symbol to send a direct notification to the user.

Standard Post

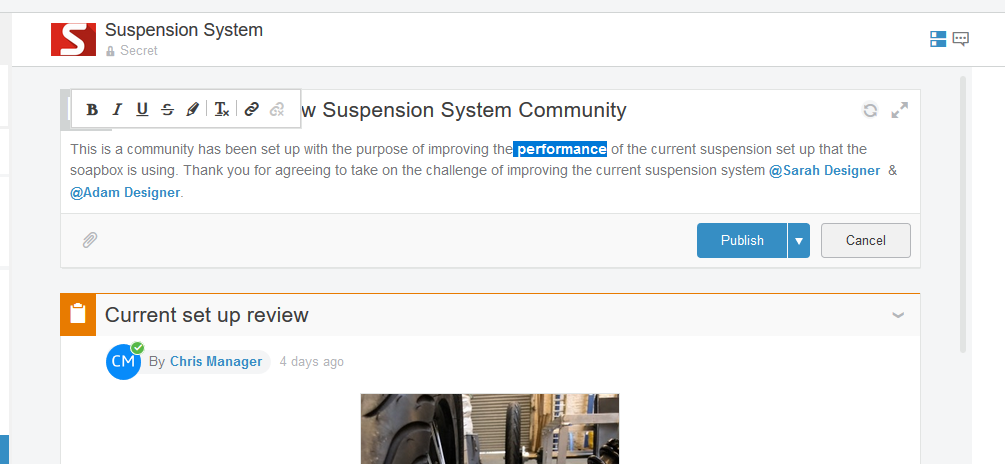

Standard post types are text-based. However, there is an option to add attachments by pressing the paper clip icon. A useful feature is mentioning/tagging a user. This can be done by using the @ symbol followed by their name. This will send a direct notification stating they have been mentioned in a post. Another useful tool is text font editing where text can be quickly changed to Bold, italic or underlined. Text can also be linked to a URL to help direct people to a website.

Media posts

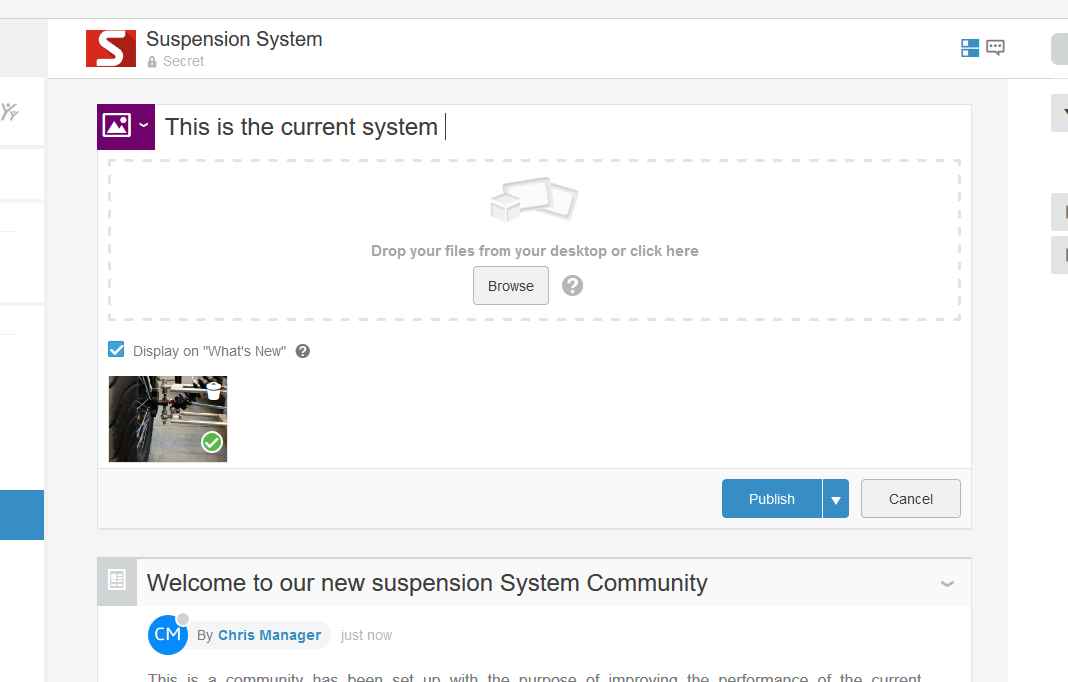

This type of post gives the user the ability to upload working documents such as Images, Video and audio files. A great way of getting a lot of information across quickly. There is a large array of support for various document formats. The current file formats support can be found below.

Type Functionality Support File Extensions Maximum Size
Image Interact with models  Jpg, tif, tiff, bmp, gif, png, jpeg 50MB
 Video View video within the post Mp4, flv, wmv, avi, mov, mpg, mpeg, mkv, rm, webm 100MB
 Audio Listen back to the audio with in the post Mp3, aac, wma, m4a, wav, agg, ra  10MB
3D Model

Interact with models, share annotated pictures from the post, section view

3ds, blend, u3d, dae, igs, kmz, 3dxml, stpz, zae, prj, stl, vrml, stp, off, wrl, str, obj, step, ply, iges, sdm 50MB
 Document Download document, Image preview of document Zip, xlsx, rtf, rsd, vsdx, csv, mpp, docx, pptx, ppsx, txt, pps, pdf, ppt, xlsm, doc, xps, xls 50MB

Idea Posts

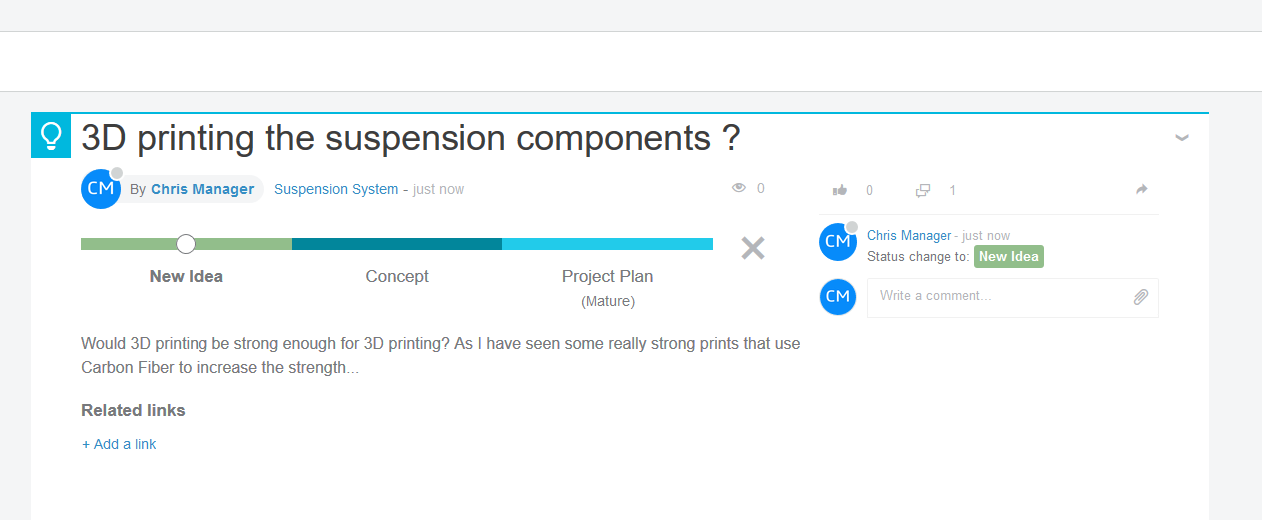

A great way to progress the development of a concept is by using idea posts. These allow you to progress concepts through your company’s development structure, keeping them all in one place. When setting up a community you have the option to change the status names/colours to match your internal terminology.

Question Posts

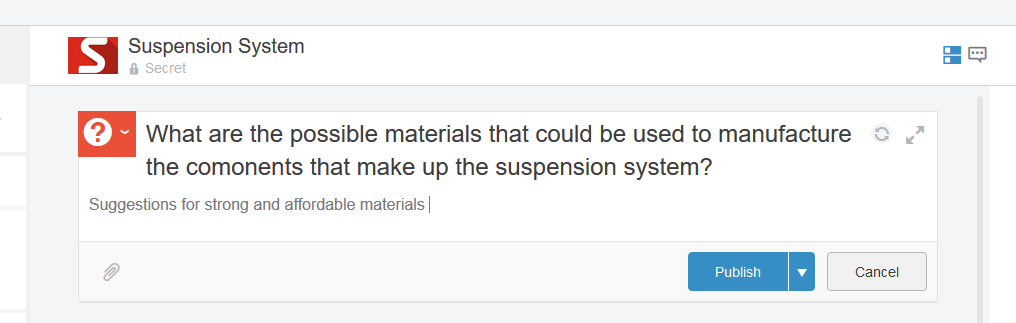

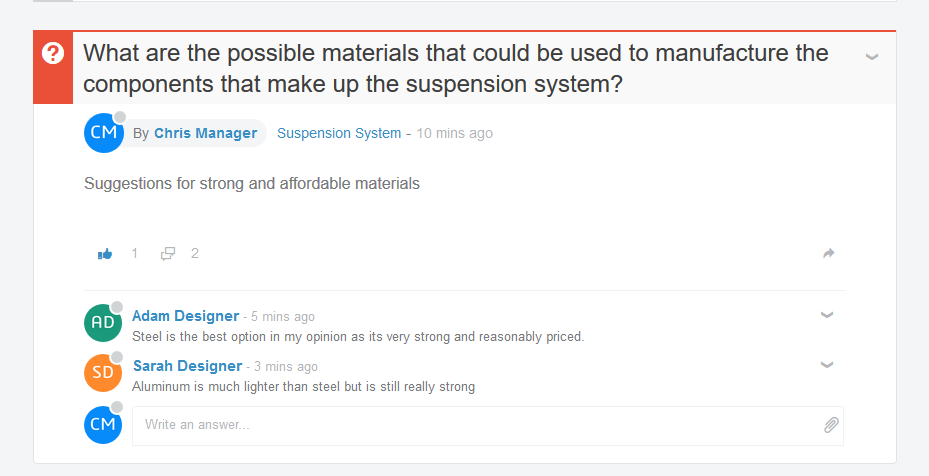

Question posts are a great way of getting quick answers to questions and sparking discussions. Similar to a standard post but will be more engaging to obtain information quickly.

Survey Posts

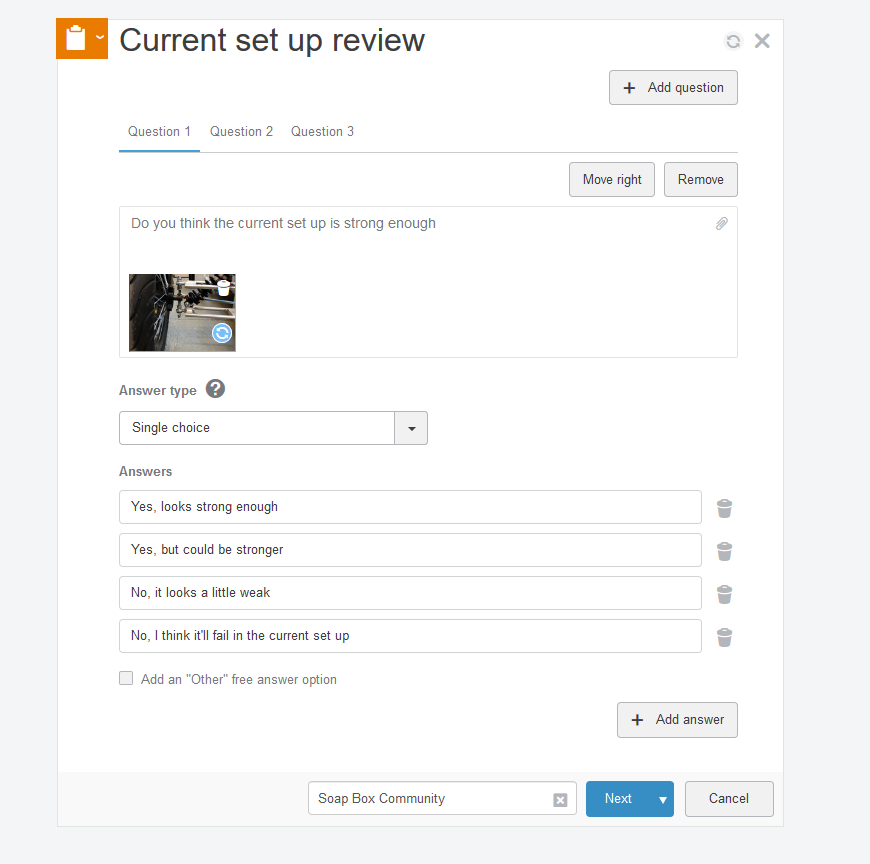

For larger communities, a survey can be really useful as it will consolidate the opinions of the entire community/stakeholders into easy to understand information. Once created and answered you will be presented with visual representation of what answers were chosen.

3DSwym Analytics

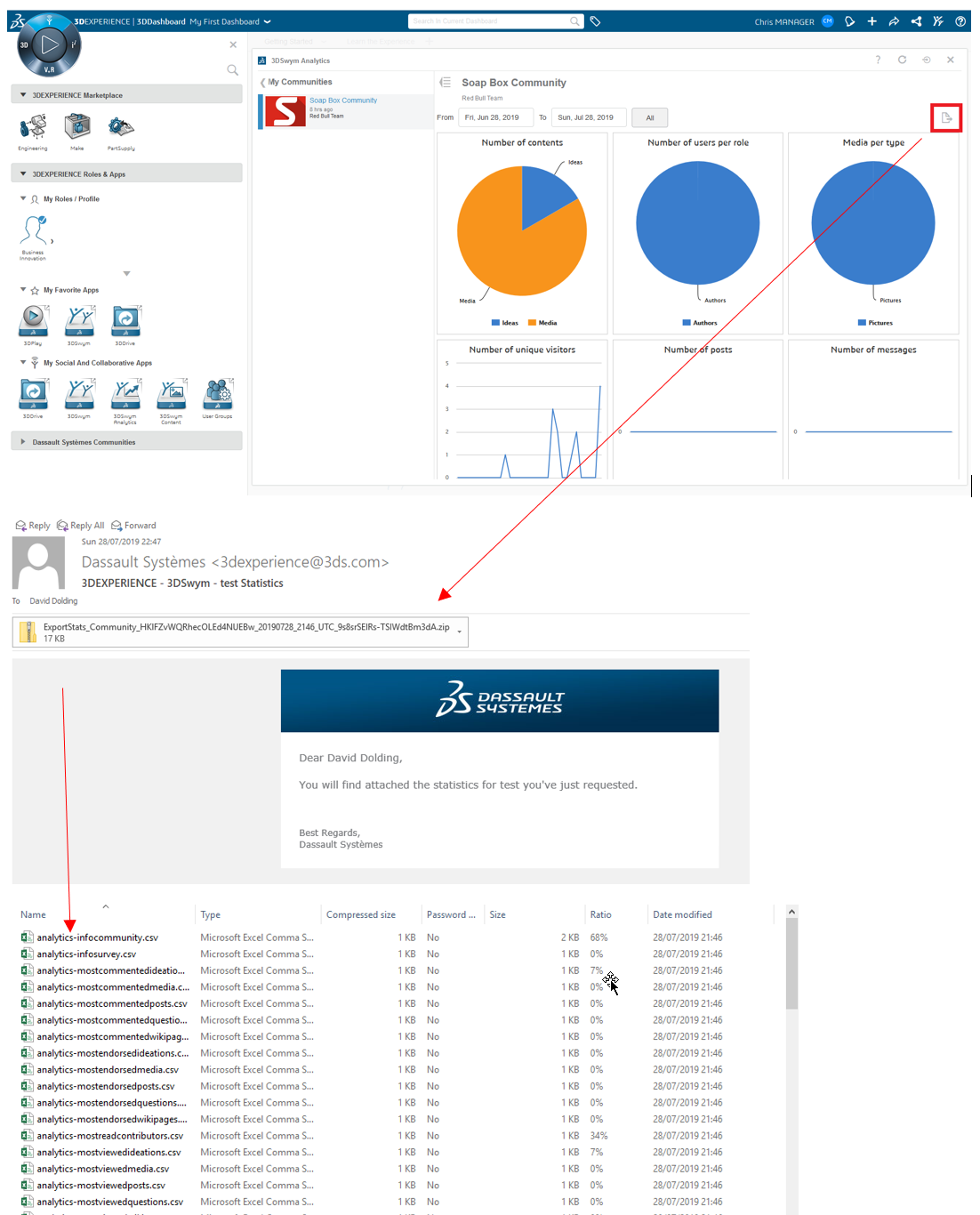

The 3DSwym analytics tool allows you to view how the members of your community are interacting with the content available. This will help increase productivity, showing which content is being interacted with most, the people who are visiting the community most and break down the type of content that is being posted. This can all be exported into a csv/excel format for further review off the platform.

So as we began this post, 3DSwym is at the very heart of the 3DEXPERIENCE platform. No matter the project managed in the platform, the need to communicate is always vital. Rather than disjoint email trails which may or may not include the necessary people, the thread based community approach allows you to easily find old discussions and track the decision making process.

By David Dolding – Applications Engineer
