Cabinet Layout

Overview

What is Cabinet Layout?

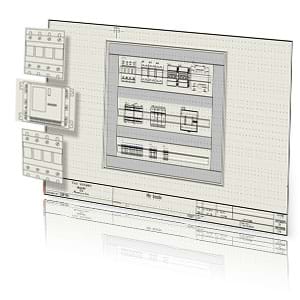

Produce 2D panel representations
SOLIDWORKS Electrical 2D cabinet creation tool has the capability to produce 2D panel representations from electrical schematics which demonstrate 2D outlines of electrical components.

Elements include:
  • Generate 2D panel representations based upon electrical schematics
  • Electrical components are represented as a 2D “footprint”
  • Library linked and auto created scaled components
