SOLIDWORKS MULTILINE SCHEMATIC

OVERVIEW

What is Multiline Schematic?
Traditional schematic creation

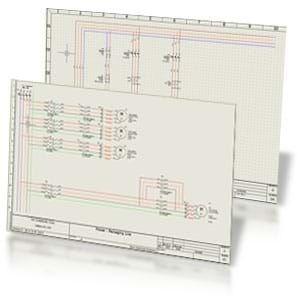

SOLIDWORKS Electrical multiline schematic capability provides a traditional schematic creation tool with a simplified user interface optimized for simplifying repetitive tasks.

Elements include:
  • Traditional electrical schematic
  • Electrical symbols representing logical components
  • Each electrical connection represented by discrete connection
  • Simplified user interface
