Gun Drilled Holes

Thursday June 20, 2013 at 12:48pm
Gun Drilled Holes

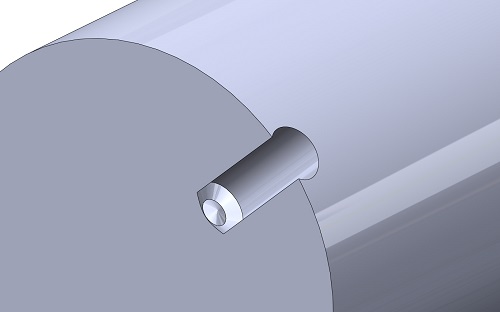

One of our customers who manufacture boring machines recently asked me whether they can add Gun Drilled Holes (which have a unique “W” profile at the end of the drilled bore) into the Hole Wizard because they use them all the time.


The solution here was to create a legacy hole with the Hole Wizard, edit the sketch profile detail and then add this modified feature into the SOLIDWORKS Design Library.


Now whenever they require a Gun Drilled Hole they can drag and drop the feature onto the curved face and SOLIDWORKS will create the hole perpendicular to the surface just like the hole wizard!

Chris Wadley
Sales Support Engineer
