Dragging Dimensions

Friday January 30, 2015 at 2:14pm
When creating smart dimensions in drawing views, we occasionally want to reposition certain dimensions. Rather than deleting a dimension and creating a new one on another view we can simply hold "Shift" and drag the desired dimension to the desired view.

When creating smart dimensions in drawing views, we occasionally want to reposition certain dimensions. This is particularly apparent when bringing through model dimensions as they get scattered and are not always on the preferred view.

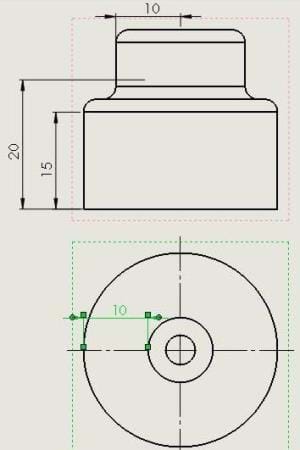

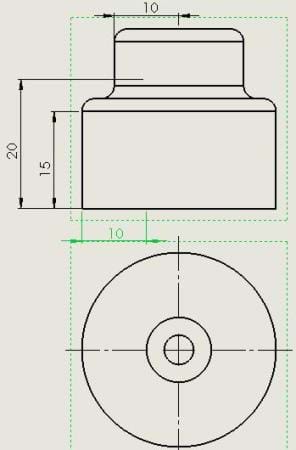

Rather than deleting a dimension and creating a new one on another view we can simply hold "Shift" and drag the desired dimension to the desired view.

By Jon Weston-Stanley

View the Video here
