Make Block

Monday January 26, 2015 at 9:49am
Blocks are a very useful tool, however most SOLIDWORKS operators don't use them as efficiently as they could. This tip will save you valuable time in your production process.

You can make, save, edit, and insert blocks for drawing items that you use often, such as standard notes, title blocks, label positions, and so on. You can attach blocks to geometry or to drawing views, and you can insert them into sheet formats.

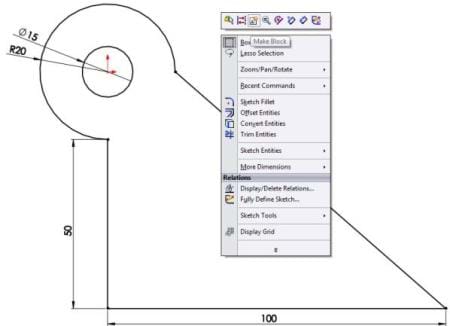

It is an incredibly useful tool, however when most SOLIDWORKS operators use this function they select items in the graphics area and click Tools > Block > Make. Whilst this is not too labour intensive, a more efficient method does exist. Whilst in your sketch, right click anywhere in the graphics area and click > Make Block. If you use this tool a lot this little tip could save a lot of valuable time.

 By Jon Weston-Stanley

View the Video here
