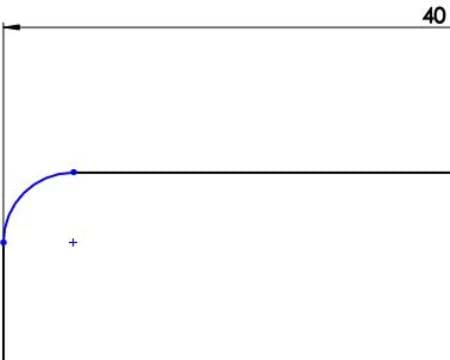

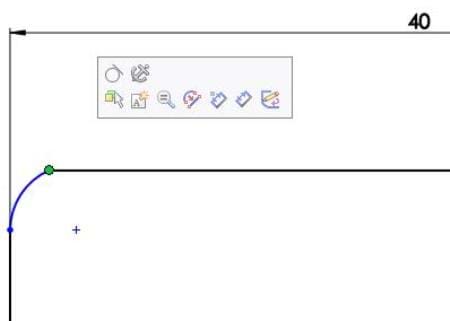

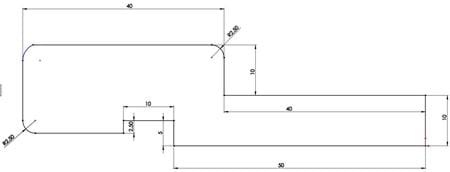

In SOLIDWORKS 2014 to make a line and an arc tangential, you had to select both sketch entities. Now in 2015 you can simply select the common vertex and the same sketch relations are presented. This is true of any sketch geometry that shares a common vertex.

In SOLIDWORKS 2014 to make a line and an arc tangential, you had to select both sketch entities. Now in 2015 you can simply select the common vertex and the same sketch relations are presented. This is true of any sketch geometry that shares a common vertex.

This is a fairly subtle enhancement, but it definitely saves a lot of time when adding Sketch Relationships manually.

By Jon Weston-Stanley

View the Video here
