SWOOD Nesting allows for automatic panel optimisation on boards specifically for CNC use. Whether you require specific grain directions, minimise waste material or manually manipulate panels to suit your needs, SWOOD Nesting can let you accomplish all of this directly in SOLIDWORKS.

View Pricing

Automatic Features

Easily get perfectly nested components with automatic nesting features or optimise output with several efficient strategies.

Precise Control

Take control of your nested components with the option to manually optimise and precisely modify nested outputs.

Optimised Workflows

Make the most of your machine with the ability to nest multiple projects at once whilst still taking into account factors like grain direction.

Production Efficiency with SWOOD Nesting

Project Optimisation Part Holding Strategy Material Management Automatic Nesting Result Panel Identification

Project Optimisation

SWOOD Nesting is an add-on technology of SWOOD CAM designed to optimise material usage, minimise machining time, and apply tailored strategies for efficient nesting. It intelligently organizes panels from multiple projects based on size, material, and colour to enhance overall production efficiency.

Part Holding Strategy

SWOOD Nesting applies dedicated strategies to ensure secure part holding and prevent movement during milling operations.

Optimised milling order: The machining sequence is automatically arranged, starting with the smallest parts and finishing with the largest, for improved stability and efficiency.
Automatic bridge creation: Bridges are inserted based on part size to link components together, preventing them from detaching from the nesting sheet.
Edge protection zones: A restricted area is defined near the board’s edges, keeping smaller parts away to maintain optimal suction and stability during machining.

Additionally, SWOOD Nesting includes advanced strategies such as onion skin milling, which reduces cutting force, and stay-down contouring, which optimises toolpaths helping save up to 20% of milling time while improving cutting precision.

Material Management

Connected to the design module, SWOOD Nesting allows you to align the grain direction of multiple front parts within a project, ensuring both efficient nesting and adherence to the project’s aesthetic requirements.

Offcuts
Automatically detect, cut, and reuse offcuts with precision. Define minimum offcut dimensions, and SWOOD will identify them and generate the corresponding cutting paths automatically, helping you make the most of every panel.

Fillers
Optimise material usage by inserting recurring parts as fillers in the remaining nesting areas. This feature lets you pre-produce and store frequently used components, saving time on future projects.

Break down leftover material into smaller, manageable pieces to simplify manual offcut handling or facilitate automatic extraction.

Automatic Nesting Result

Panel Identification

Streamlined Process

4 Steps in SWOOD Nesting

SWOOD Nesting optimises production by maximising material use, reducing waste, and boosting efficiency at every stage.

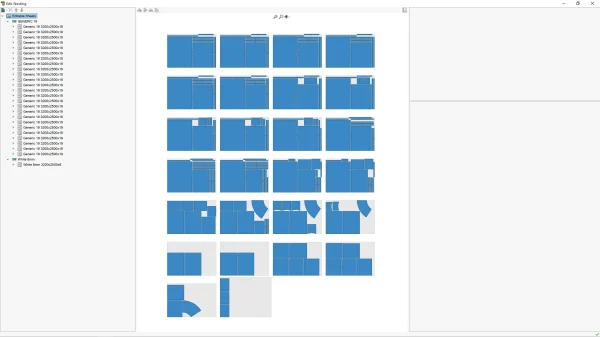

swood nesting_nesting sheet vizualisation
