Edge Breaking in SolidCAM: The Small Machining Step That Delivers Big Results

Why edge breaking in SolidCAM matters

When discussing machining efficiency, most conversations focus on cycle times, tool life and material removal rates. However, one often-overlooked operation can have a significant impact on part quality, customer satisfaction and shop-floor efficiency: edge breaking in SolidCAM.

Sharp edges and burrs are an unavoidable by-product of many machining processes. On straight edges or non-tangent outer surface topologies, burrs can occur when the tool chips material away from the edge. The result can be a razor-sharp condition that affects safety, functionality and the final quality of the component.

Traditionally, manufacturers often rely on hand deburring or secondary finishing processes. These can be effective, but they are also labour-intensive, inconsistent and difficult to standardise. Bringing edge breaking into the CAM process helps reduce that dependency and gives manufacturers a more controlled route to finished parts.

Automated deburring with SolidCAM

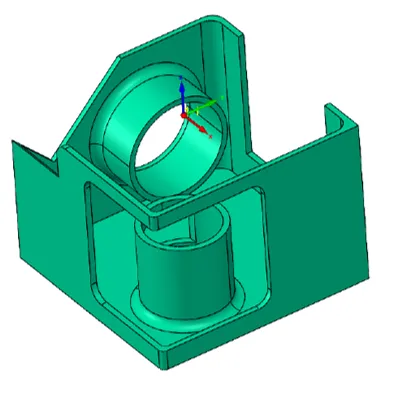

The operation of Edge Breaking in SolidCAM is designed to create a deburring toolpath around the outer edges of a part geometry. Instead of manually selecting every edge, the programmer can select the target geometry and allow the operation to detect suitable features automatically.

The tool is positioned relative to the edge using the bi-vector between the two adjacent surfaces. This helps maintain a consistent relationship between tool and edge, supporting predictable edge quality across the component.

Edge Breaking in SolidCAM supports a simple and practical manufacturing workflow with automatic feature detection, linking, lead-in control and collision avoidance. Together, these features help make edge breaking faster to programme and safer to validate before going to the machine.

From 3-axis simplicity to 5-axis reach

Edge Breaking in SolidCAMcan use both 3-axis and 5-axis machining strategies. This flexibility matters because not every component presents the same access conditions.

3-axis edge breaking in SolidCAM

For edges that are easy to reach, a 3-axis output can provide a simple and efficient way to remove burrs using supported ball-type tooling. This is often well suited to accessible external edges where programming speed and repeatability are the priority.

In a 3-axis setup, the machine movement remains relatively simple, making this approach a good fit for straightforward components, open edges and jobs where the main goal is to remove sharp edges without adding unnecessary programming complexity.

5-axis edge breaking

For more complex parts, 5-axis output gives the tool greater reach and more freedom to maintain a suitable machining position. The tutorial includes a 5-axis minimal tilting option and a full 5-axis output, helping the programmer control access, linking and machine motion around more challenging geometry.

This is especially useful where edges are difficult to reach with a fixed tool axis, or where the cutter needs to maintain better contact around complex surfaces. By using 5-axis motion, manufacturers can reduce the need for manual repositioning, extra setups or secondary finishing work.

What tools can be selected?

Tool choice is a critical part of creating a reliable and efficient Edge Breaking strategy in SolidCAM.

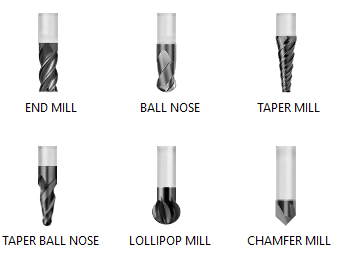

In SolidCAM, the Edge Breaking operation supports a wide range of milling tools commonly used for finishing and deburring edges. Supported tool types include:

• End Mill
• Ball Nose Mill
• Tapered End Mill
• Taper Ball Nose
• Lollipop Mill
• Chamfer Mill

End Mills can be used for straightforward edge breaks where access is open and a simple corner relief is required.

Ball Nose Mills are a very common and practical choice. They provide smooth point contact, making them ideal for controlled, consistent edge rounding along accessible edges.

Taper Ball Nose tools are useful when additional reach or rigidity is required. The tapered geometry improves stiffness and allows better access into deeper or narrower areas.

Lollipop Mills are ideal for difficult-to-access edges, especially when reaching around or underneath features. Their undercutting capability makes them highly effective for complex geometries.

Chamfer Mills are especially suitable when a defined chamfer size or angle is required instead of a rounded edge.

For manufacturers using SolidCAM, tool selection should always consider:

• Edge location and accessibility
• Machine kinematics (3-axis or 5-axis strategy)
• Holder and shank clearance
• Required edge break size or chamfer angle
• Surface finish requirements

Choosing the correct cutter improves process stability, reduces collision risk, and ensures a consistent, high-quality finished edge.

Understanding the tilt options

One of the key advantages of SolidCAM Edge Breaking is the ability to control how the tool is oriented during the operation. This is particularly important on parts where access, holder clearance or surface geometry can affect the quality of the finished edge.

Each option gives the programmer a different level of control over tool movement and machine behaviour.

3 Axis is the simplest option. It keeps the tool direction fixed and is best suited to accessible edges where there is no need for additional tool angle control.

4 Axis builds complexity by allowing the user to assign a rotary axis to reach more of the component edges with the edge breaking toolpath.

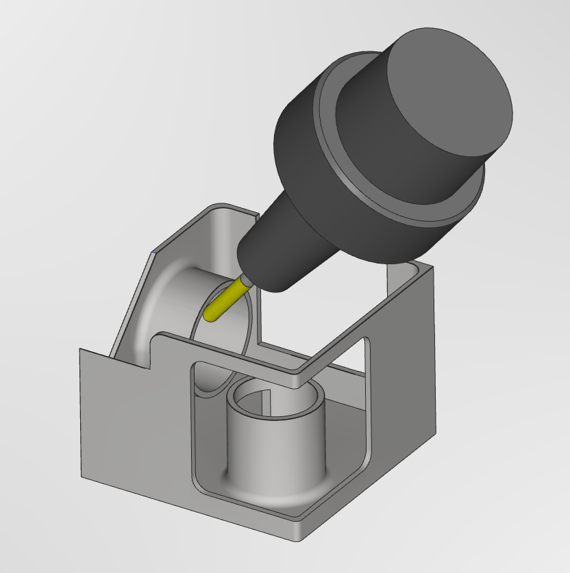

5 Axis (Minimal tilting) gives the software the ability to tilt the tool only where needed. This is a practical option when the part requires improved access, but the programmer still wants to keep machine movement controlled and efficient. Minimal tilting can help avoid unnecessary rotary motion while still improving reach around awkward features.

Full 5 Axis provides the highest level of tool-axis flexibility. This is useful when machining more complex edge conditions, where the tool may need to move dynamically to maintain clearance, improve contact, or avoid collisions. The tutorial also references machine control and interpolation settings, which help control how the machine handles angular movement during simulation and machining.

The practical benefit is that programmers are not locked into a single approach. A simple part can be programmed quickly with 3-axis output, while a more complex component can take advantage of 5-axis movement where tool access and collision avoidance become more important.

Conclusion

Edge breaking may look like a small finishing operation, but it can remove a surprisingly costly manufacturing bottleneck. By automating deburring toolpaths within SolidCAM, manufacturers can reduce manual finishing, improve repeatability and move more confidently from programming to production.

The added control over tool-axis output gives programmers the flexibility to choose the most appropriate strategy for the part, whether that is a simple 3-axis operation, a controlled 5-axis minimal tilting approach, or a full 5-axis toolpath for more complex geometry.

Combined with support for ball-type tools such as Ball Nose Mill, Taper Ball Nose and Lollipop mill cutters, SolidCAM Edge Breaking gives manufacturers a practical way to improve edge quality, reduce manual variation and create a more consistent finishing process.

For teams already working in SolidCAM, the Edge Breaking operation is a practical way to improve part quality and reduce shop-floor variation without adding unnecessary programming complexity.
